Classic Volkswagens hold a special place in automotive history, largely thanks to their iconic air-cooled engines. Whether you’re a seasoned enthusiast or a new owner, this guide answers all your questions about these remarkable engines, including how they work, key maintenance tips, and common issues. Let’s dive in and discover how to keep your air-cooled engine running smoothly.

What is an Air-Cooled Volkswagen Engine?

An air-cooled VW engine is a type of internal combustion engine that uses air, instead of liquid coolant, to regulate operating temperatures. These engines use large cooling fins on the engine casing and an integrated fan to dissipate heat. This simple, lightweight design became a defining feature of Volkswagen’s early vehicles, especially the Beetle.

Which Volkswagen Models Had Air-Cooled Engines?

Volkswagen produced a variety of models with air-cooled engines, including:

•    VW Beetle (Type 1): Perhaps the most famous of all.
•    VW Transporter (Type 2): This includes iconic camper vans such as the T1, T2, and early versions of the T3/T25.
•    Karmann Ghia & T34: A stylish variant based on the Beetle platform.
•    VW Thing/Trekker (Type 181/2): A military-inspired vehicle.
•    VW Type 3 & Type 4: Larger vehicles with air-cooled, rear-mounted engines.
•    Brasília (Type 321): VW’s small family car manufactured in Brazil from ‘73 to ‘82.
•    SP2: A rare sporty coupe alternative to the Beetle built in San Paulo Brazil between ‘72 and ‘75.

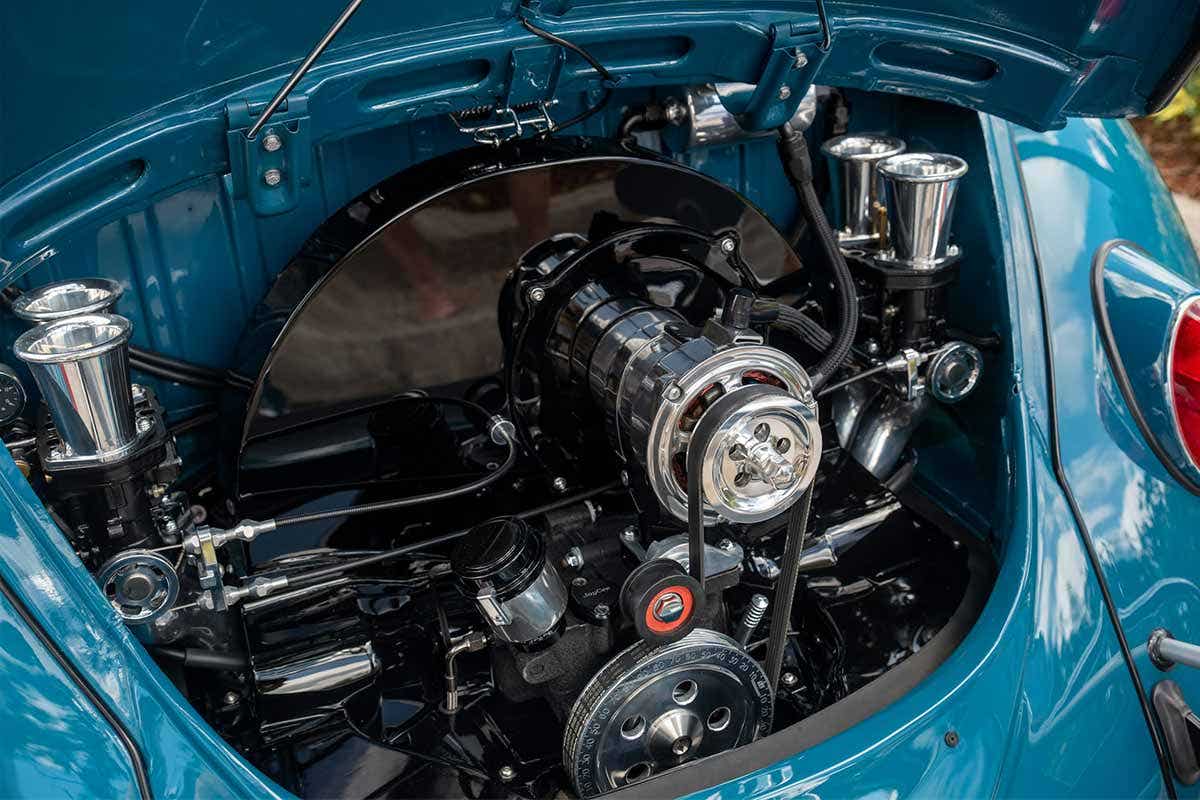

VW Beetle Air-Cooled EngineVW Beetle Air-Cooled Engine

Why did Volkswagen Stop Making Air-Cooled Cars?

The transition from air-cooled to water-cooled engines occurred for several reasons:

•    Emissions standards: As global emissions regulations became stricter, air-cooled engines struggled to meet new environmental standards.
•    Efficiency and power: Water-cooled engines provided better fuel efficiency, more power, and improved cooling control.
•    Noise: Air-cooled engines are notably louder than water-cooled engines. The last air-cooled Volkswagens were made in early 2000s, with the end of Beetle production in Mexico.

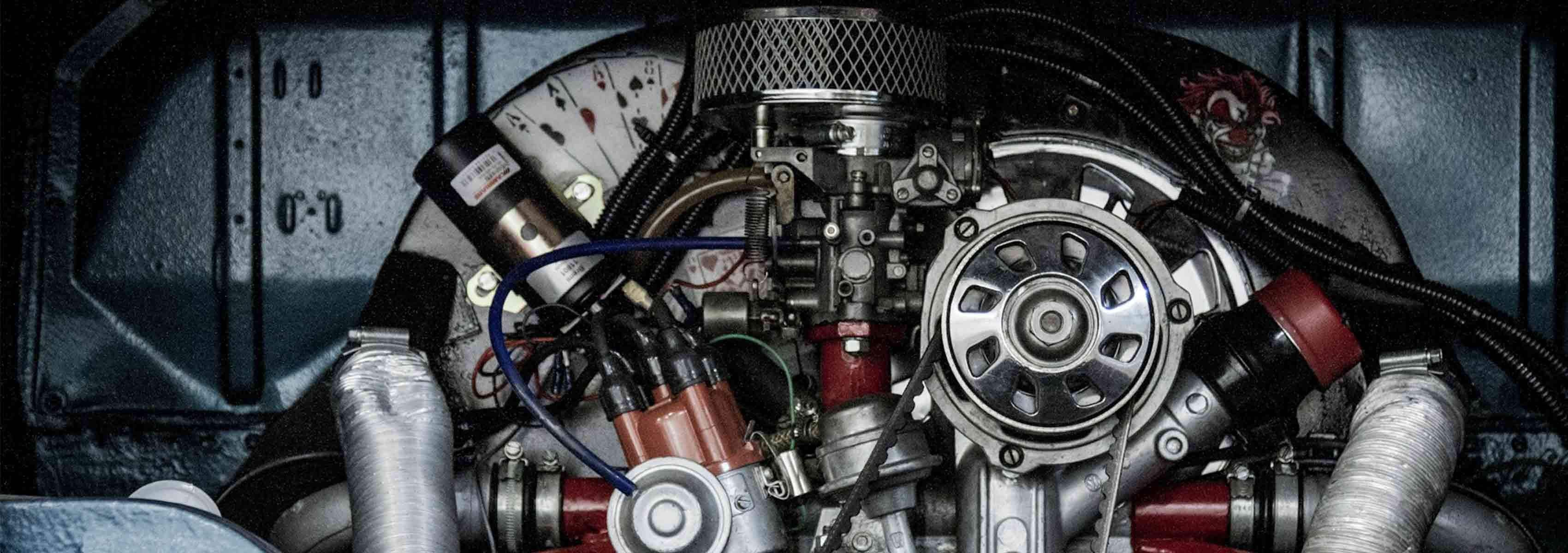

How Does the Air-Cooled Engine in a VW Beetle Work?

The air-cooled engine in a VW Beetle is a horizontally opposed four-cylinder engine (commonly referred to as a flat-four or boxer engine). Air is drawn in by a fan, which cools the cylinders as it circulates around the fins on the engine block. This design removes the need for water pumps, radiators, or coolant, keeping things simple and lightweight.

Is the Air-Cooled Engine in a VW Camper the Same as in a Beetle?

Yes and no. While the engines in the VW camper vans (Type 2 Transporters) share many characteristics with the Beetle engine, such as the flat-four configuration and air-cooling system, they were often larger, to deal with the additional weight of the camper body. Early VW campers used a 1.2 to 1.6-litre engine, similar to the Beetle, but later models featured larger 1.7 to 2.0-litre engines for more power.

T2 Bay WindowT2 Bay Window

Exploring Air-Cooled Volkswagen Engine Types

Volkswagen’s air-cooled engines are celebrated for their simplicity, reliability, and adaptability. From powering iconic cars like the Beetle and Bus to unconventional uses in aircraft and industrial pumps, these engines have proven to be versatile workhorses.

Volkswagen Engine Types: Overview and Technical Details

Type 1 Upright Engine:

Displacement and Bore/Stroke Configurations: The Type 1 engine powered the Volkswagen Beetle, Karmann Ghia, and early Type 2 Buses. It had several configurations:

Engine Size

Bore x Stroke

Displacement (cc)

Vehicles

1100cc

77mm x 64mm

1131cc

Early Beetles (1938–1953)

1200cc

77mm x 64mm

1192cc

Beetle, Bus (1954–1965)

1300cc

77mm x 69mm

1285cc

Mid-1960s Beetles

1500cc

83mm x 69mm

1493cc

Late 1960s Beetles

1600cc

85.5mm x 69mm

1584cc

Super Beetle, Bus

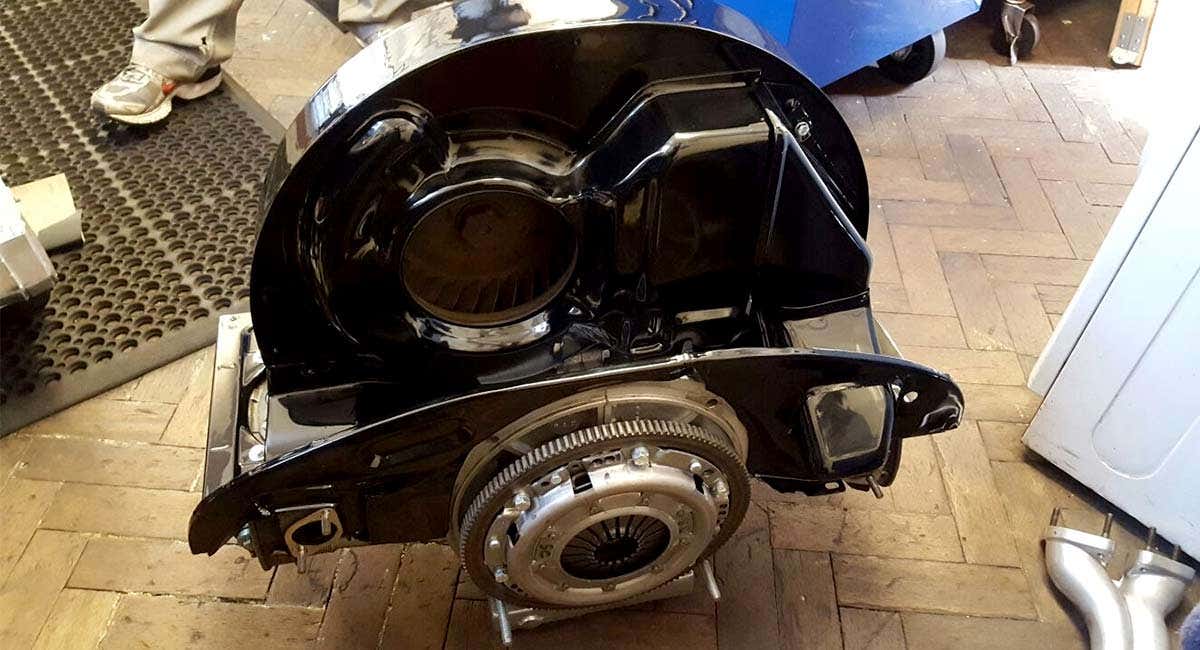

The upright fan shroud design allowed for efficient cooling in compact vehicles. These engines were known for their ease of maintenance and adaptability for custom builds.


Type 2 Engines (Transporter/Bus):

Early Buses shared Type 1 engines, but as the weight of the Transporter increased, the Type 4 engine (discussed later) was introduced in the late 1960s to provide more power and durability. Upright engines dominated early models, but pancake configurations improved rear cargo space.


Type 3 Pancake Engine:

Introduced with the VW Squareback, Fastback, and Notchback, the Type 3 engine featured a horizontally mounted cooling fan. Here are the specifications:

Engine Size

Bore x Stroke

Displacement (cc)

Vehicles

1500cc

83mm x 69mm

1493cc

Type 3 (1961–1966)

1600cc

85.5mm x 69mm

1584cc

Type 3 (1966 onward)



This design made it suitable for compact sedans and wagons with a flat rear floor.


Type 4 Upright and Pancake Engines:

The Type 4 engine was VW’s largest air-cooled engine, used in the VW 411/412, Porsche 914, and later VW Buses. These engines featured increased durability and displacement compared to earlier designs. Here are the specifications:



Engine Size

Bore x Stroke

Displacement (cc)

Vehicles

1700cc

90mm x 66mm

1679cc

VW 411/412, Porsche 914

1800cc

93mm x 66mm

1795cc

VW Bus, Porsche 914

2000cc

94mm x 71mm

1971cc

Late VW Bus, Porsche 914





Unique Applications of Volkswagen's Air-Cooled Engines

Volkswagen’s air-cooled engines demonstrated remarkable versatility and found applications beyond traditional road vehicles. Their lightweight construction, reliability, and simple air-cooling system made them ideal for a variety of specialised uses, such as:

1.    Aircraft Applications

One of the most fascinating uses of VW air-cooled engines was their adaptation for light aircraft and experimental aviation. Key factors that made them suitable include:

•    Lightweight Construction: VW air-cooled engines were significantly lighter than liquid-cooled alternatives – an essential for aircraft where weight directly impacts performance and safety.
•    Air-Cooling: Eliminating the need for a radiator and coolant reduced weight complexity, making these engines easier to install and maintain in small aircraft.

Adaptations for Aviation:

•    Special kits were developed to modify VW engines for aviation use, such as improving lubrication systems to handle extended high-RPM operation and incorporating better oil cooling systems.
•    Commonly used engines included the 1600cc Type 1 and the 2000cc Type 4, as their reliability and compact size make them popular choices for ultralight and experimental planes.
•    The engines powered a variety of aircraft types, from powered gliders to ultralights and small experimental planes designed by hobbyists and engineers.

These engines continue to be used in aviation today, with enthusiasts embracing their affordability and availability compared to traditional aircraft engines.


2.    Industrial Equipment

Volkswagen’s air-cooled engines were widely adapted for industrial purposes due to their robust design and ability to operate under demanding conditions. Key uses include:

•    Water Pumps: In rural or agricultural settings where power sources were limited, VW engines were used to pump water for irrigation or industrial processes.
•    Stationary Generators: Air-cooled VW engines provided power for generators in remote areas, where their simplicity and reliability were crucial. These generators could supply electricity for small factories, farms, or even emergency situations.
•    Agricultural Equipment: In farming applications, VW Engines powered a variety of tools and machines, such as threshers and sprayers, where their consistent operation was an asset.

Industrial applications highlighted the engine's ability to operate for long periods without overheating, thanks to its air-cooling system, and its adaptability to different power outputs with minimal modification.


3.    Military Vehicles

Volkswagen’s air-cooled engines were integral to several German military vehicles during World War II. The engines’ simplicity, durability, and air-cooling system made them perfect for challenging conditions. Notable vehicles include:

•    Kübelwagen: The Kübelwagen, or "bucket car," was a lightweight, off-road military utility vehicle, similar to the Jeep. Powered by a Type 1 engine, it was known for its reliability and ability to traverse rough terrain.
•    Schwimmwagen: The Schwimmwagen was an amphibious vehicle based on the Kübelwagen platform. Its air-cooled engine allowed it to operate effectively in water without the need for a water-based cooling system.
•    Post-War Variants: After the war, modified VW engines continued to power military and paramilitary equipment around the world, particularly in rugged, off-road scenarios where reliability was paramount.

These applications demonstrated the engine’s ability to function in extreme conditions, from deserts to swampy terrain.

Are Air-Cooled Volkswagen Engines Reliable?

Air-cooled VW engines are famous for their reliability and simplicity. With fewer parts to fail (no radiator, water pump, or coolant system), these engines can last for decades if properly maintained. However, because they rely on airflow for cooling, they can be more sensitive to overheating than water-cooled engines.

What Maintenance is Required for an Air-Cooled VW Engine?

Routine maintenance is essential to keep your air-cooled engine running smoothly. Key tasks include:

•    Regular oil changes: Every 3,000 miles or so, as oil also plays a role in cooling the engine.
•    Valve adjustments: Air-cooled engines require periodic valve clearance adjustments to ensure efficient operation.
•    Fan belt inspection: Ensure the fan belt is in good condition, as it powers the fan that cools the engine.

Which Parts in an Air-Cooled Engine are Most Prone to Wear?

The following parts typically require more attention:

•    Fan belt: Essential for the engine cooling fan.
•    Cylinders and piston rings: These can wear over time, especially if the engine overheats.
•    Pushrod tubes and seals: Leaks in these areas can cause oil loss.
•    Spark plugs and distributor: Regular replacements help maintain optimal engine performance.

How do I Know if an Air-Cooled Engine Part Needs Replacing or Can Be Repaired?

Signs of part failure include excessive oil consumption, loss of power, smoke from the exhaust, or loud knocking noises. Mechanics can inspect the engine for specific issues and determine if a part can be repaired or needs replacing.

How Difficult is it to Install Common Replacement Engine Parts on an Air-Cooled VW?

Replacing parts on an air-cooled engine can be done with basic mechanical knowledge and tools, but some repairs, such as valve adjustments or piston ring replacement, require more advanced skills.

Are There Any Specific Tools Needed to Replace Parts on an Air-Cooled VW?

Yes, common tools include:

•    Valve adjustment tools (feeler gauge)
•    Torque wrench
•    Fan belt tension gauge
•    Basic hand tools like screwdrivers, wrenches, and sockets

How Do Air-Cooled VW Engines Compare to Water-Cooled Engines in Performance?

Air-cooled engines tend to produce less power than modern water-cooled engines and are also more prone to overheating under heavy loads. However, they are lighter, simpler, and easier to maintain.

How to Keep Your Air-Cooled VW Engine Cool

Here are some key steps to prevent overheating:

•    Ensure the cooling fan is working and free from any debris.
•    Keep the oil level topped up, as it helps with cooling.
•    Regularly clean out airways to ensure proper airflow.
•    Install external oil coolers for added cooling performance.

Do Air-Cooled Volkswagens Overheat Easily?

Yes, air-cooled VWs can overheat more easily than water-cooled engines, especially in hot weather or during long drives at high speeds. Ensuring proper maintenance and airflow is crucial for avoiding this.

Common Issues with Air-Cooled VW Engines That Require Replacement Parts

Some common problems include:

•    Overheating due to clogged cooling fins, missing tinware, and/or seals.
•    Oil leaks from worn pushrod tubes, crankshaft seals, or oil cooler seals.
•    Worn piston rings leading to a reduction in power.

Costs of Replacing Major Components of an Air-Cooled VW Engine

Costs can vary, but common replacements include:

•    Fan belts: £10 - £20
•    Cylinders and pistons: £400 - £800 for a full set
•    Complete engine rebuilds: £2,000 - £3,000 depending on condition and parts used

Can You Still Get Parts for Air-Cooled Volkswagens?

Yes, air-cooled VW parts are widely available from specialist suppliers, such as Just Kampers, as well as other aftermarket suppliers.

What Does My Air-Cooled VW Engine Number Mean?

The engine number indicates the type and production year of your engine. It's helpful when identifying the correct replacement parts, and determining if your engine is original to the vehicle. Find out more about engine and chassis numbers for various vehicles.

Advantages of Owning an Air-Cooled Volkswagen

•    Simple and robust design
•    Easy to maintain
•    Iconic sound and driving experience
•    Lightweight and efficient for their time

Disadvantages of Air-Cooled Volkswagens

•    Prone to overheating
•    Less power than modern engines
•    Noisy compared to water-cooled engines
•    Requires frequent maintenance

JK's Top Ten Air-Cooled VW Engine Tuning Tips

The air-cooled engine, especially those found in classic Volkswagens, offers a unique set of challenges and rewards when it comes to tuning. Here are ten top tips to help you get the most out of your air-cooled engine:

1. Start with a Solid Foundation:
Ensure your engine is in good mechanical condition. This includes proper compression, valve timing, and a clean fuel system. A well-maintained engine will provide a solid base for further modifications.

2. Prioritise Cooling:
Air-cooled engines rely on airflow for cooling. Ensure proper airflow by keeping the engine compartment clean, using a good quality fan shroud, and checking for any obstructions in the cooling fins.


3. Upgrade the Ignition System:

A strong spark is crucial for efficient combustion. Consider upgrading to performance spark plugs, wires, and a high-performance distributor or electronic ignition system.

4. Optimise the Fuel System:
The fuel system plays a vital role in engine performance. Consider upgrading to a larger carburettor or fit dual carburettors and ensure proper fuel pressure and delivery.




5. Improve Airflow:

Increase airflow to the engine by installing a free-flowing air filter and exhaust system. A well-designed exhaust system can help improve scavenging and reduce backpressure.

6. Enhance Combustion Chamber Efficiency:
Consider having the cylinder heads ported and polished to improve airflow. This can increase power and efficiency.

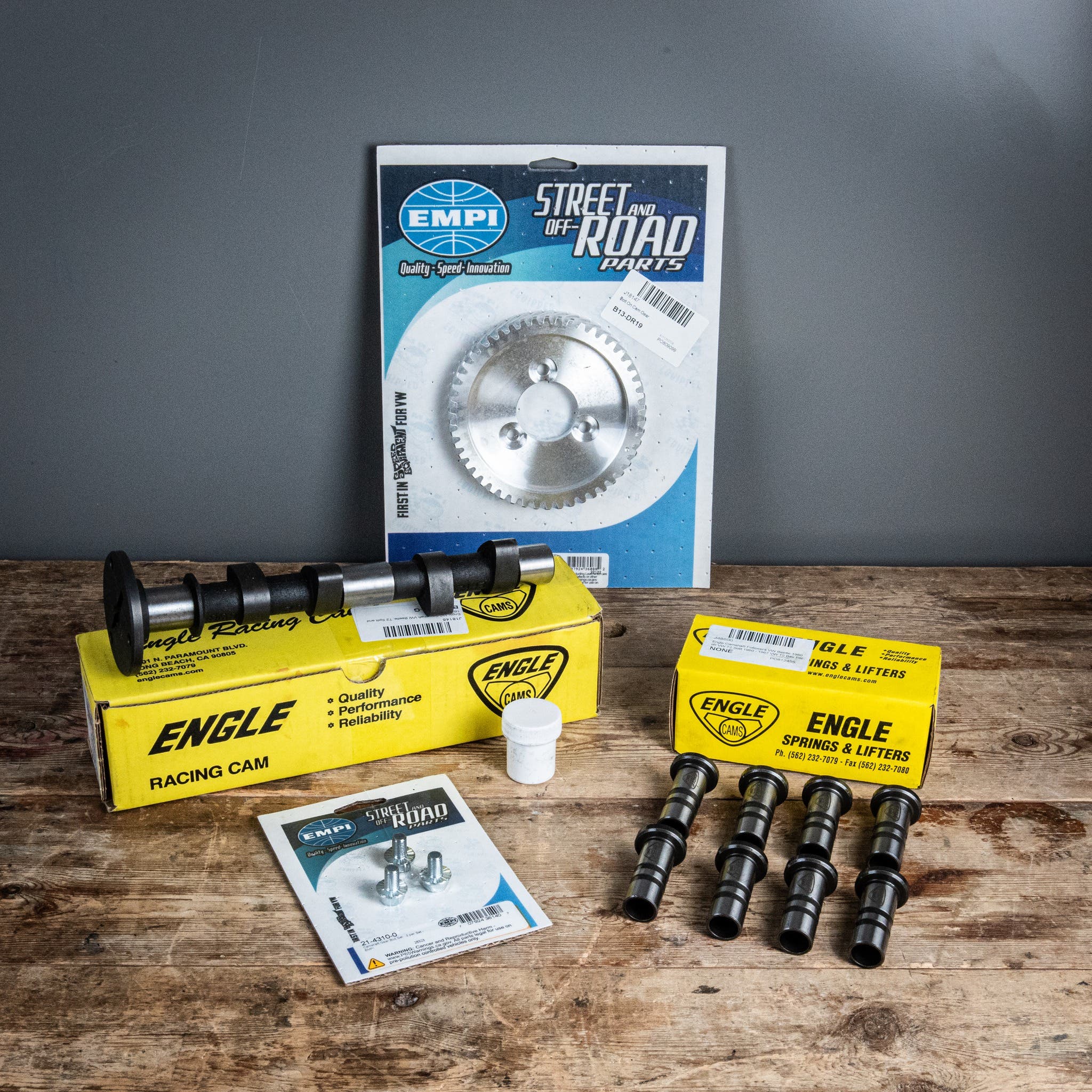

7. Upgrade the Camshaft:

A performance camshaft can increase power and torque by optimising valve timing. Choose a camshaft that suits your driving style and desired performance goals.

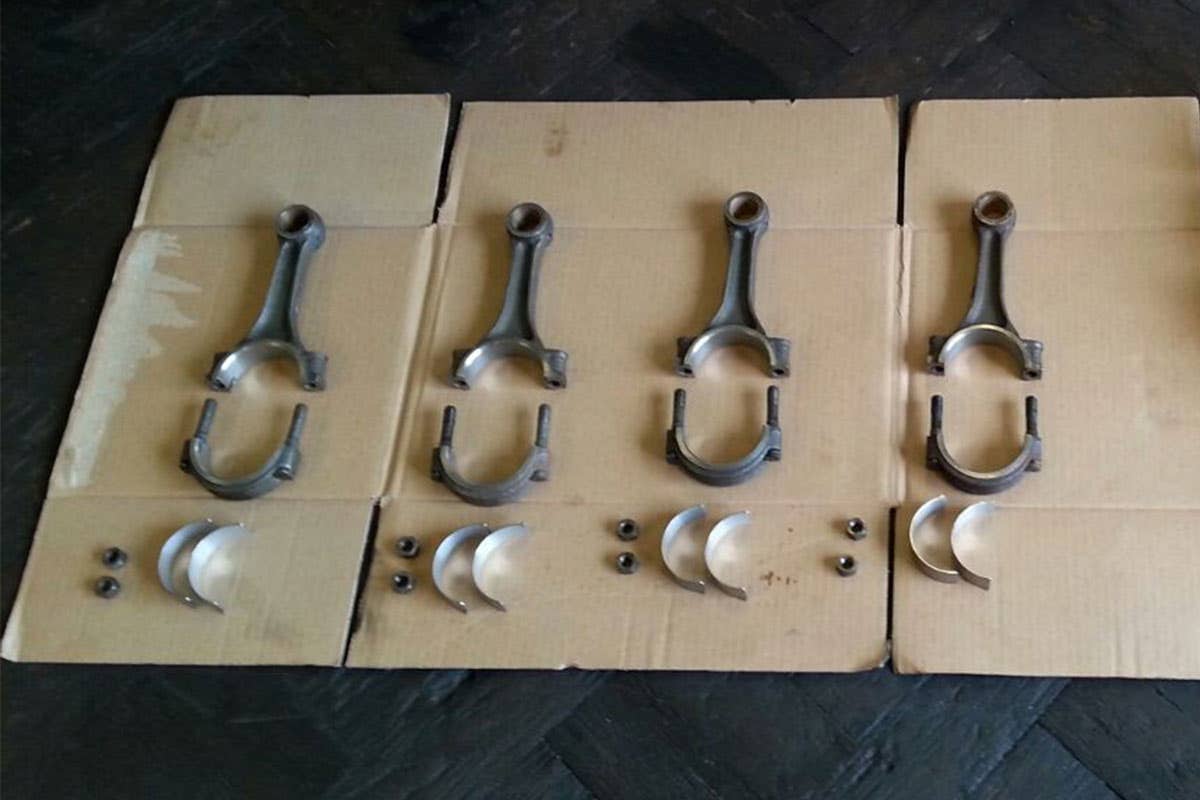

8. Strengthen Internal Components:

For higher performance levels, consider upgrading internal components such as pistons, connecting rods, and crankshaft. This will help the engine handle increased power and stress.




9. Tune for Optimal Performance:

Once you've made modifications, fine-tune the engine using a wideband air/fuel ratio gauge and a dyno. This will ensure that the engine is running at its peak efficiency.

10. Regular Maintenance:
Regular maintenance is essential for keeping your air-cooled engine running smoothly and reliably. This includes regular oil changes, filter replacements, and checking for any signs of wear and tear.

Remember, tuning an air-cooled engine is a gradual process. Start with smaller, less invasive modifications and gradually increase the level of modification as your knowledge and experience grows. Always prioritise safety and reliability.

Air-Cooled Engine Building: Building a reliable and high-performance powerplant

Building an air-cooled Volkswagen engine is both an art and a science, combining mechanical precision with a passion for these legendary powerplants. Whether you’re restoring a classic VW or creating a high-performance engine, the process involves careful planning, the right tools, and a good understanding of the engine's components and systems.

Key Considerations in Air-Cooled Engine Building

1.    Define the Purpose
The first step is identifying how the engine will be used. This dictates the choices for displacement, components, and tuning:

•    Daily Driving: Prioritise reliability, smooth operation, and fuel efficiency. A 1776cc or 1915cc engine is ideal for this.
•    Racing or High-Performance Street Builds: Maximise horsepower and torque with larger displacements (e.g., 2110cc or 2332cc) and advanced tuning.
•    Off-Road Applications: Focus on torque and durability for crawling or sandy terrains.

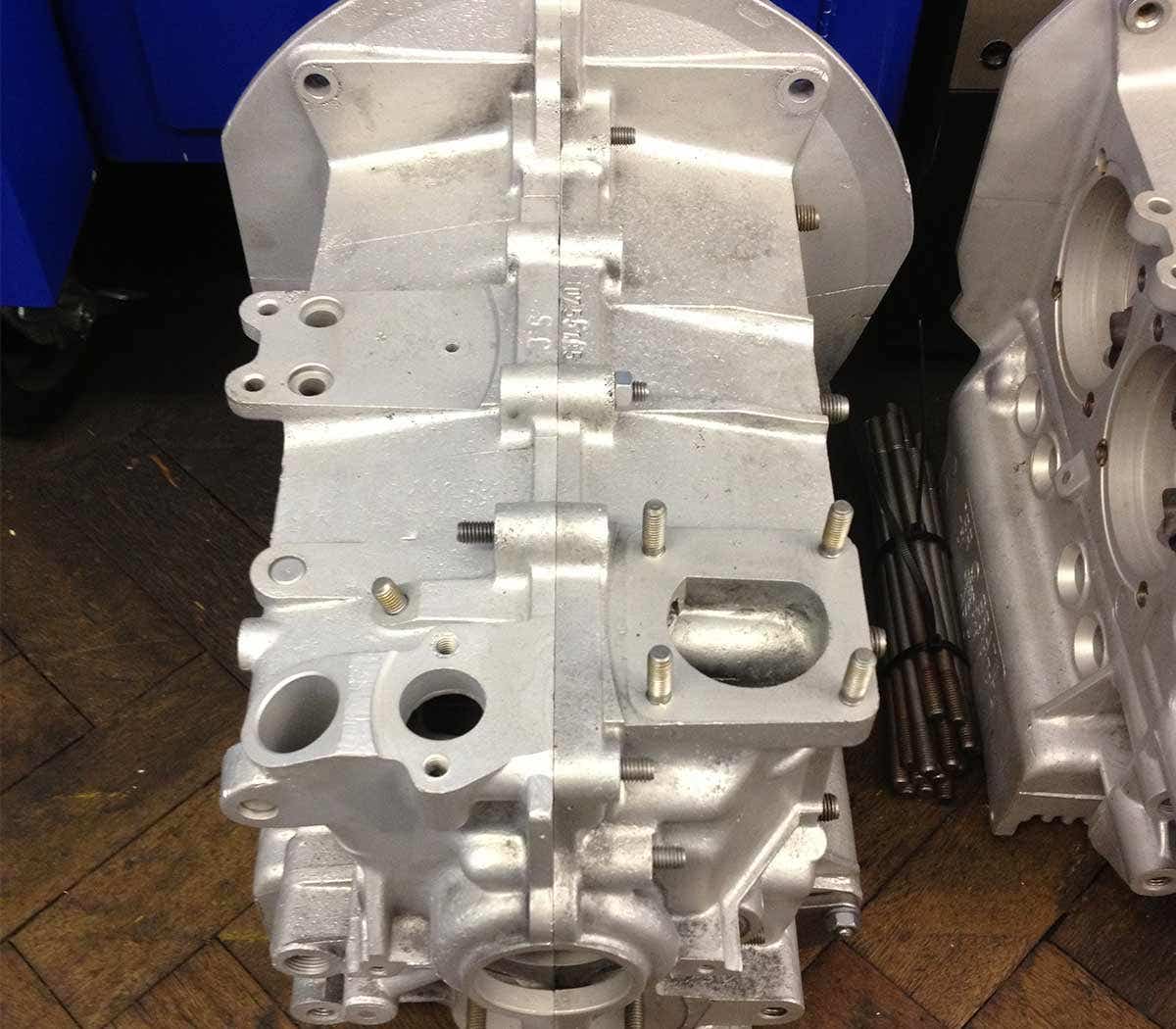

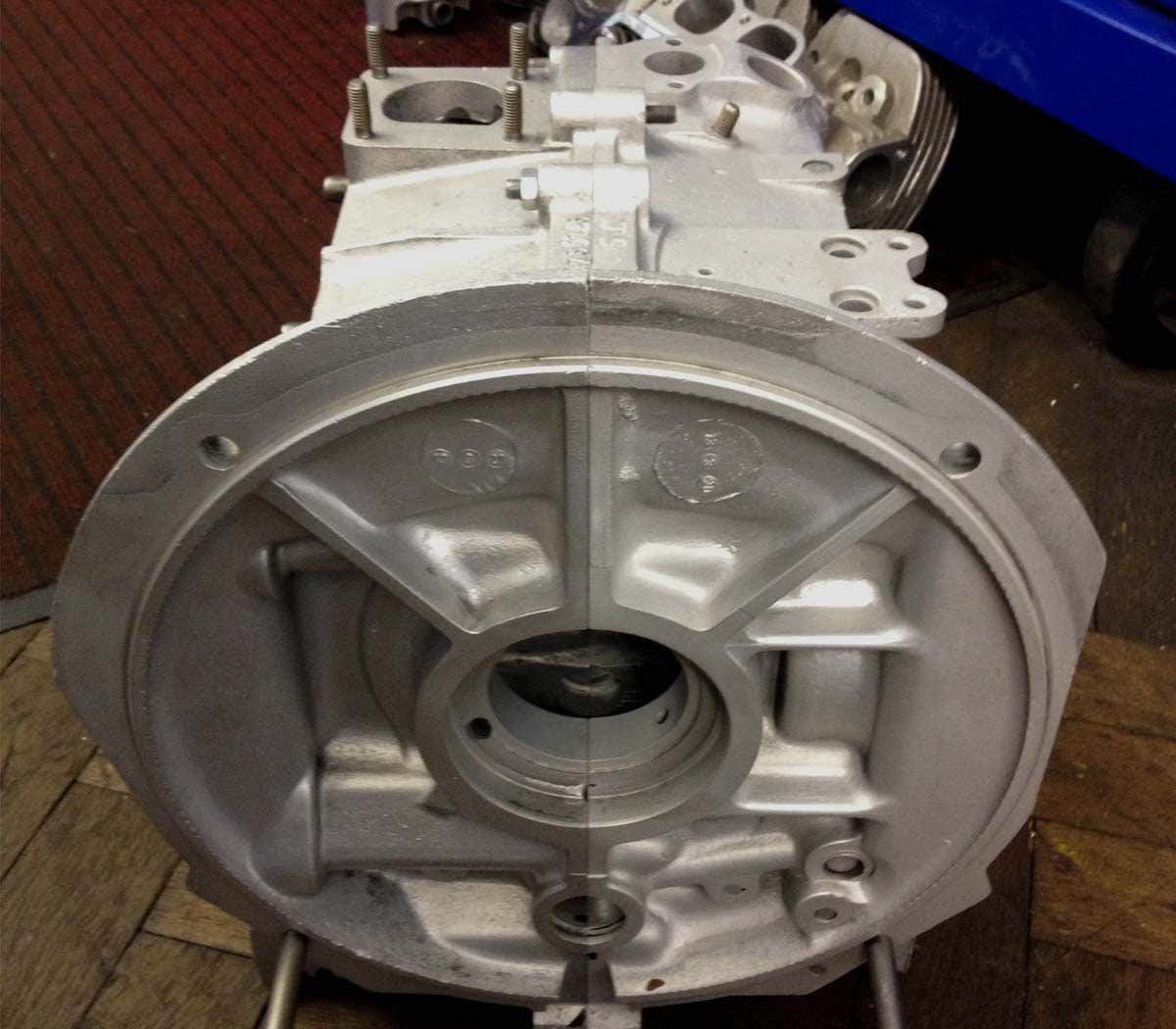

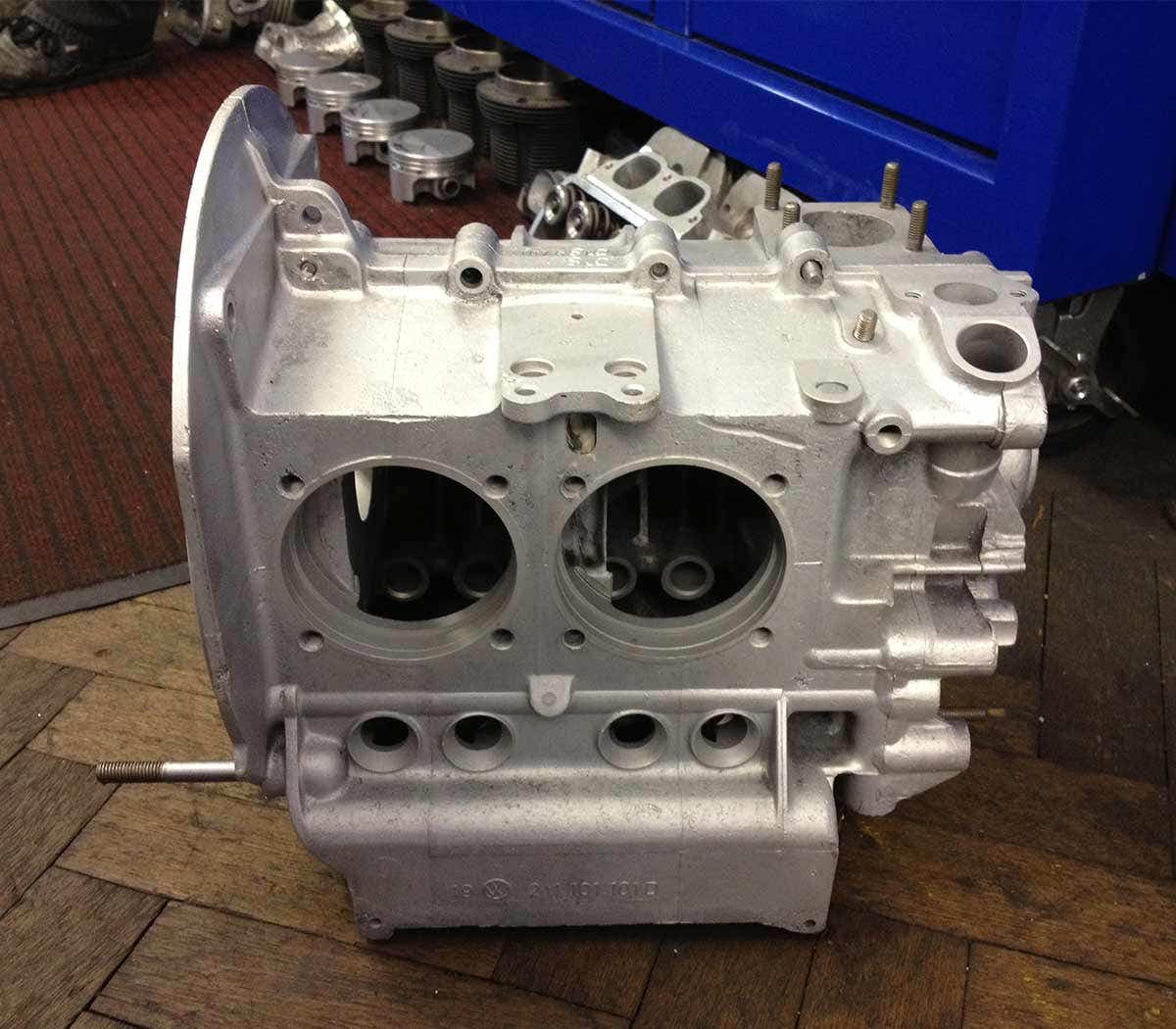

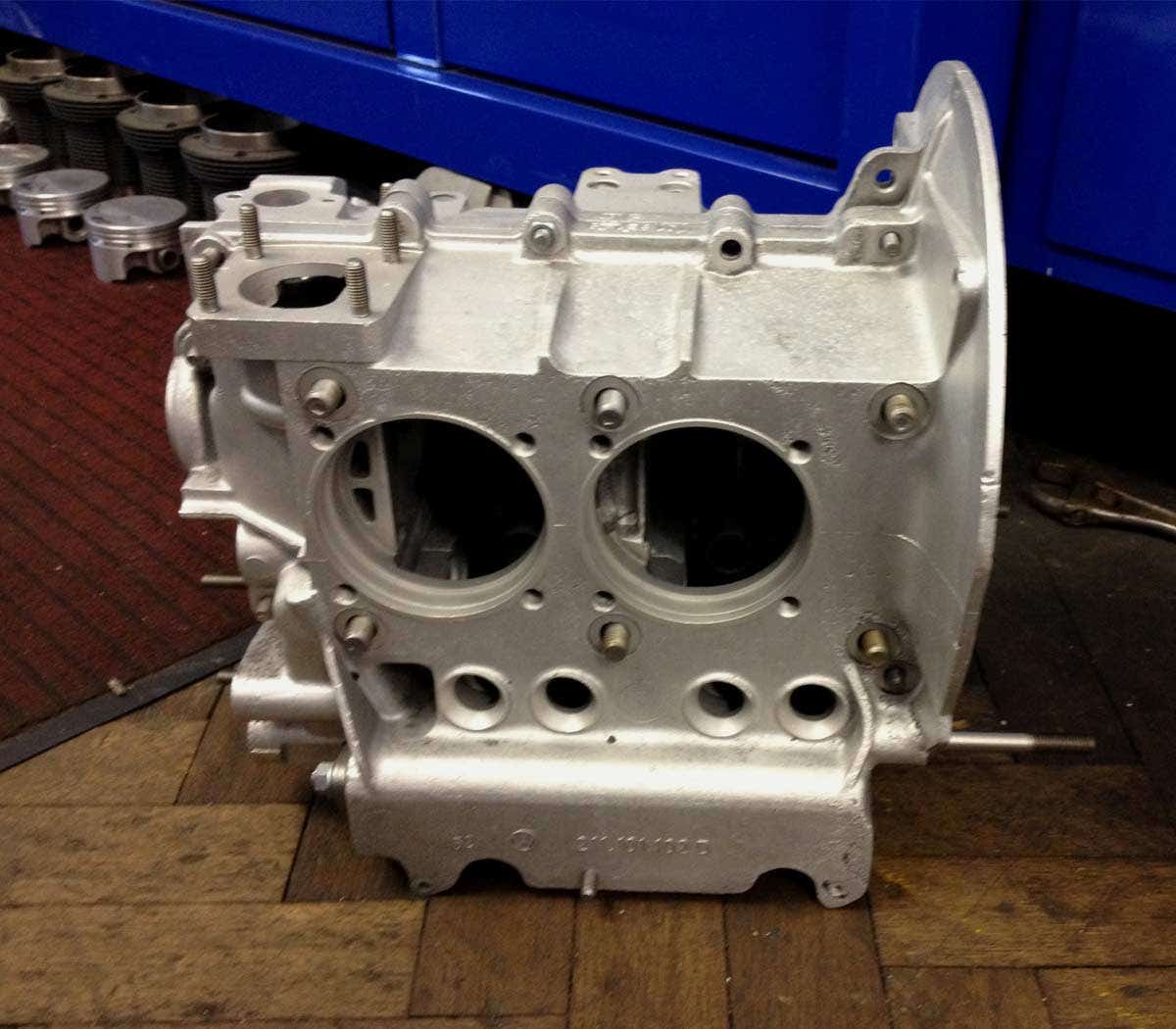

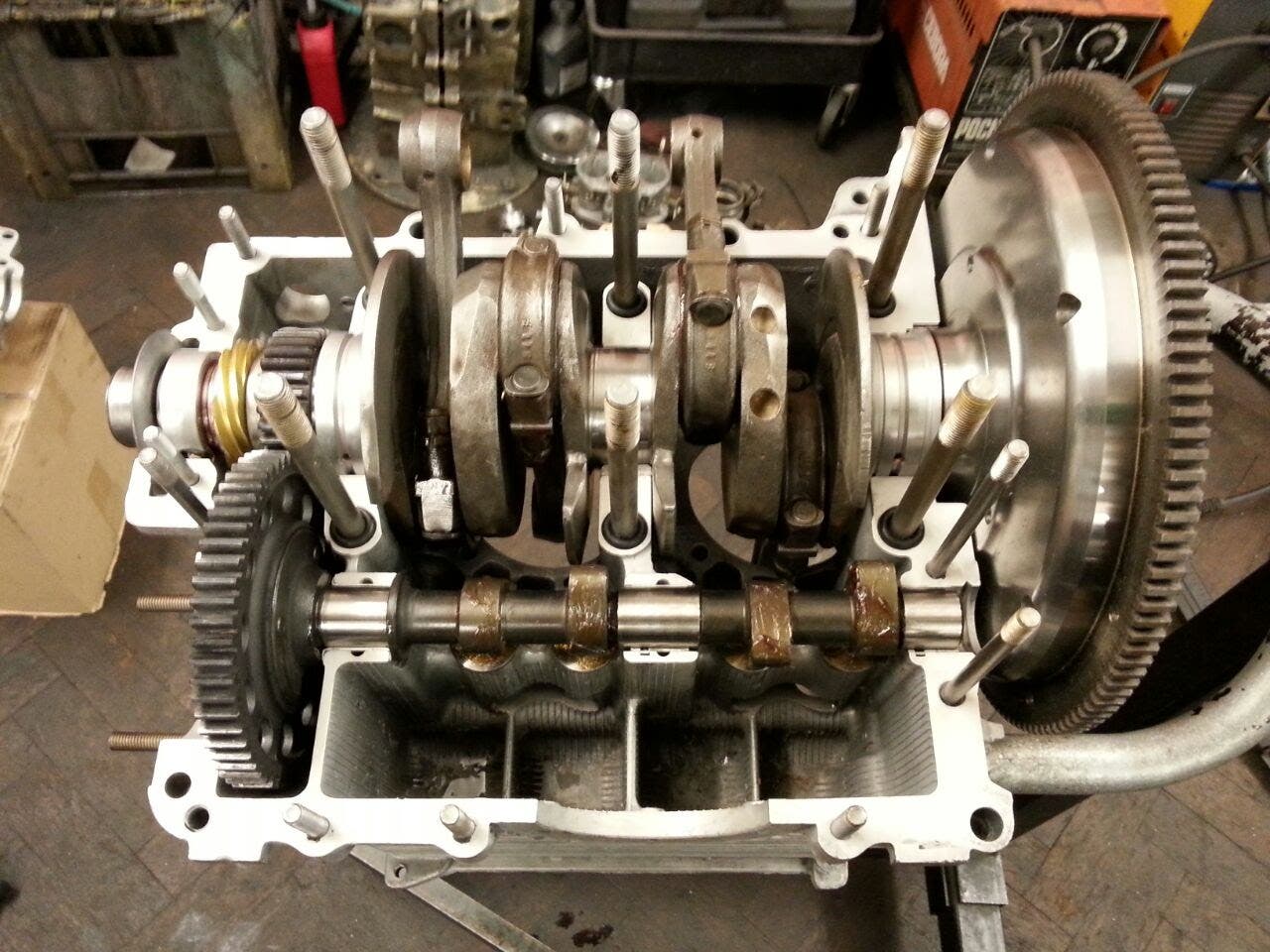

2.    Start with the Right Case

The engine case is the foundation of any build. Options include:

•    Stock Cases: Reliable for smaller builds or mild performance engines. Ensure the case is free of cracks and wear.
•    Aftermarket Aluminium Cases: Ideal for high-performance or large-displacement builds. These are stronger and designed to handle increased stress.


3.    Displacement and Stroke

Increasing displacement is the most effective way to boost power. This involves a combination of larger bore pistons and longer stroke crankshafts:

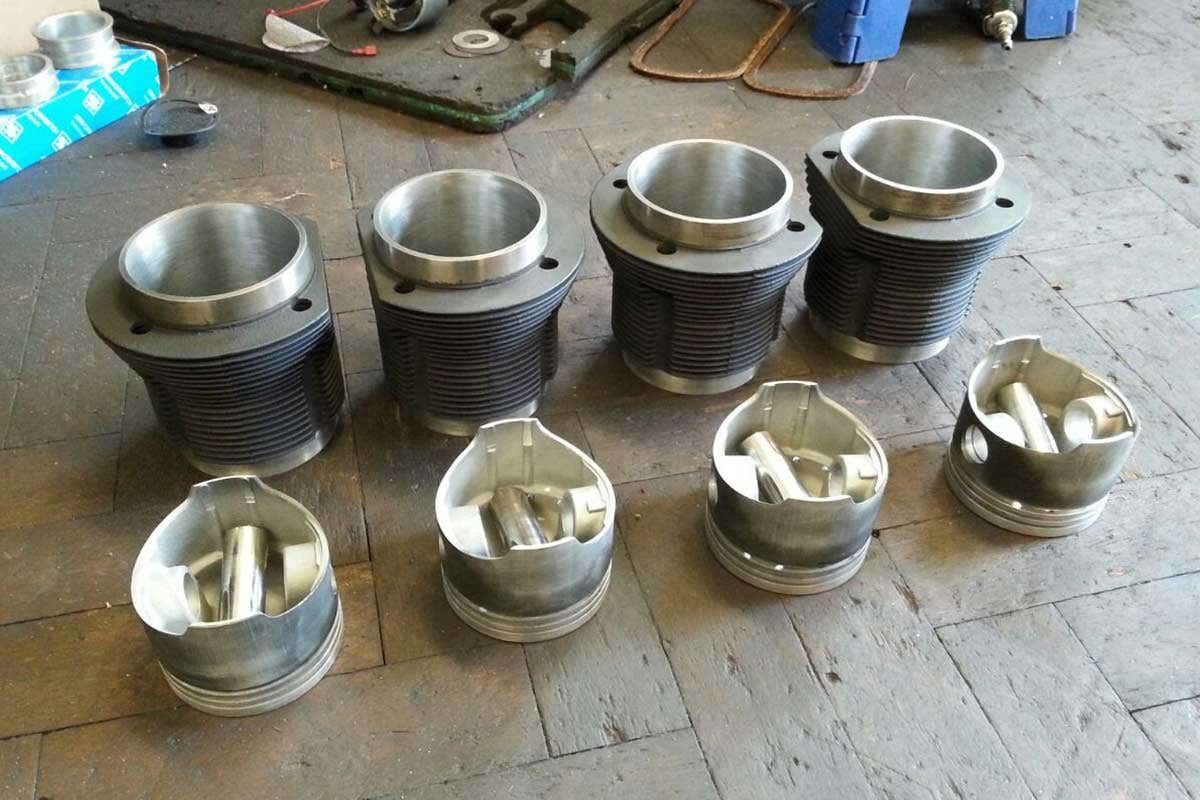

•    Big Bore Kits: Replace the stock 85.5mm pistons with 90.5mm or 94mm pistons for increased cylinder volume.

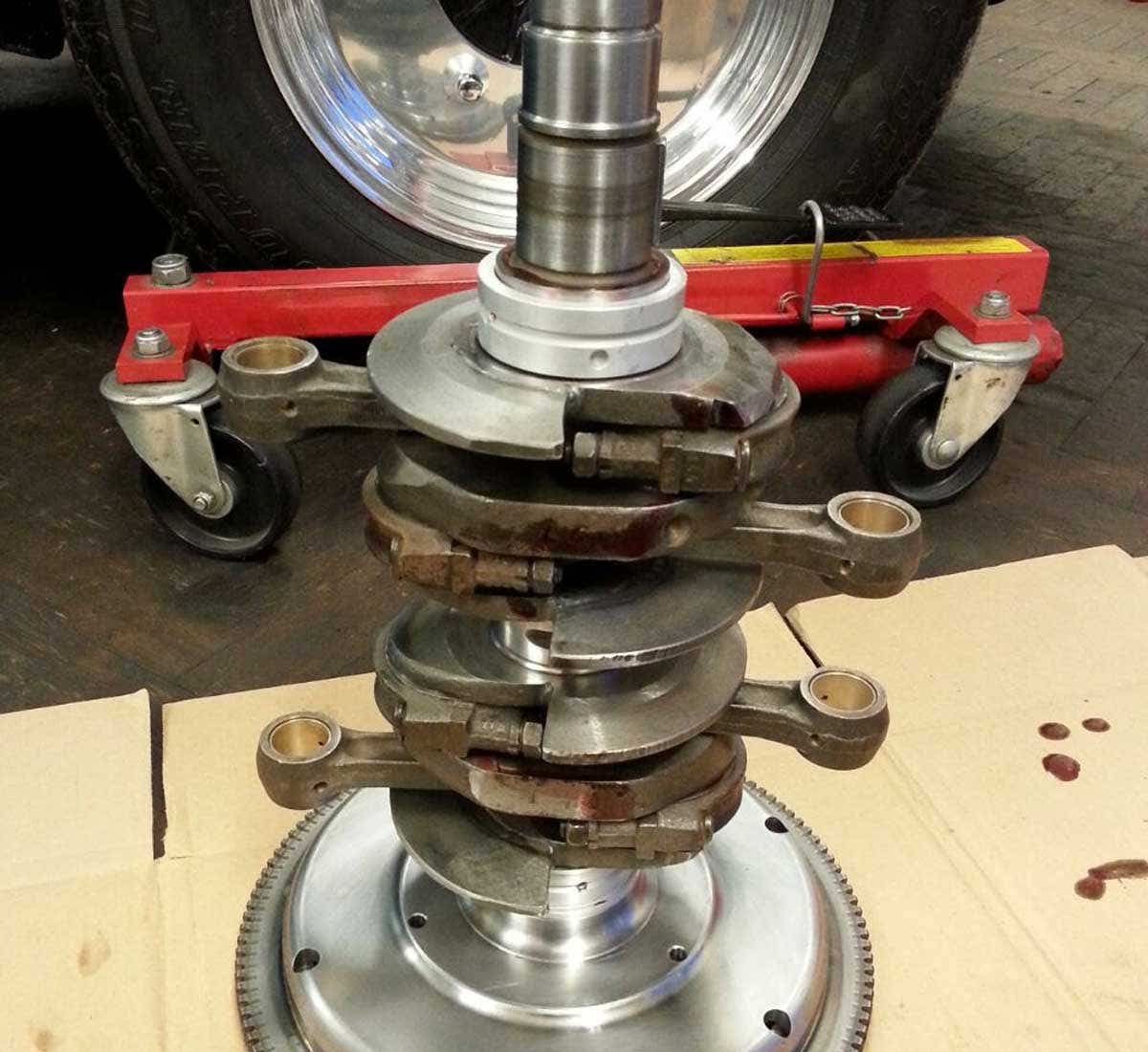

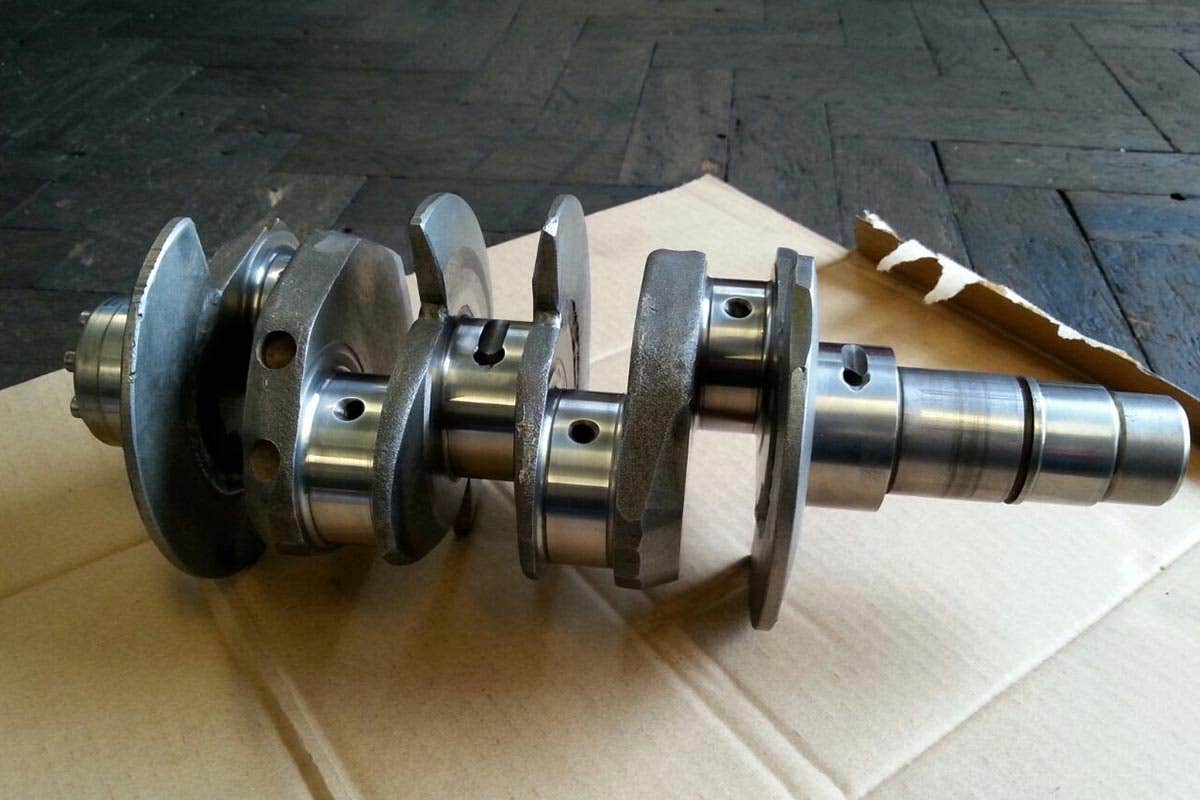

•    Stroker Crankshafts: Increase the stroke length (e.g., 82mm or 84mm) to achieve displacements beyond 2000cc.


Popular Bore x Stroke Combinations:

Bore Size

Stroke Length

Displacement (cc)

Application

85.5mm

69mm

1600cc

Stock builds.

90.5mm

69mm

1776cc

Reliable performance.

94mm

69mm

1915cc

Performance street builds.

90.5mm

82mm

2110cc

Balanced power/reliability.

94mm

84mm

2332cc

High-performance engines.


A full list of the various combinations of Stroke / Bore and displacements are below:



Stroke / Bore

77mm

83mm

85.5mm

87mm

90.5mm

92mm

94mm

64mm

1192cc

1385cc

1496cc

1521cc

1646cc

1700cc

1776cc

69mm

1286cc

1493cc

1585cc

1641cc

1776cc

1835cc

1915cc

74mm

1378cc

1602cc

1699cc

1760cc

1904cc

1968cc

2054cc

76mm

1416cc

1645cc

1745cc

1807cc

1956cc

2021cc

2110cc

78.8mm

1453cc

1688cc

1791cc

1855cc

2007cc

2074cc

2165cc

82mm

1527cc

1775cc

1883cc

1950cc

2110cc

2180cc

2276cc

84mm

1565cc

1818cc

1929cc

1997cc

2161cc

2234cc

2332cc

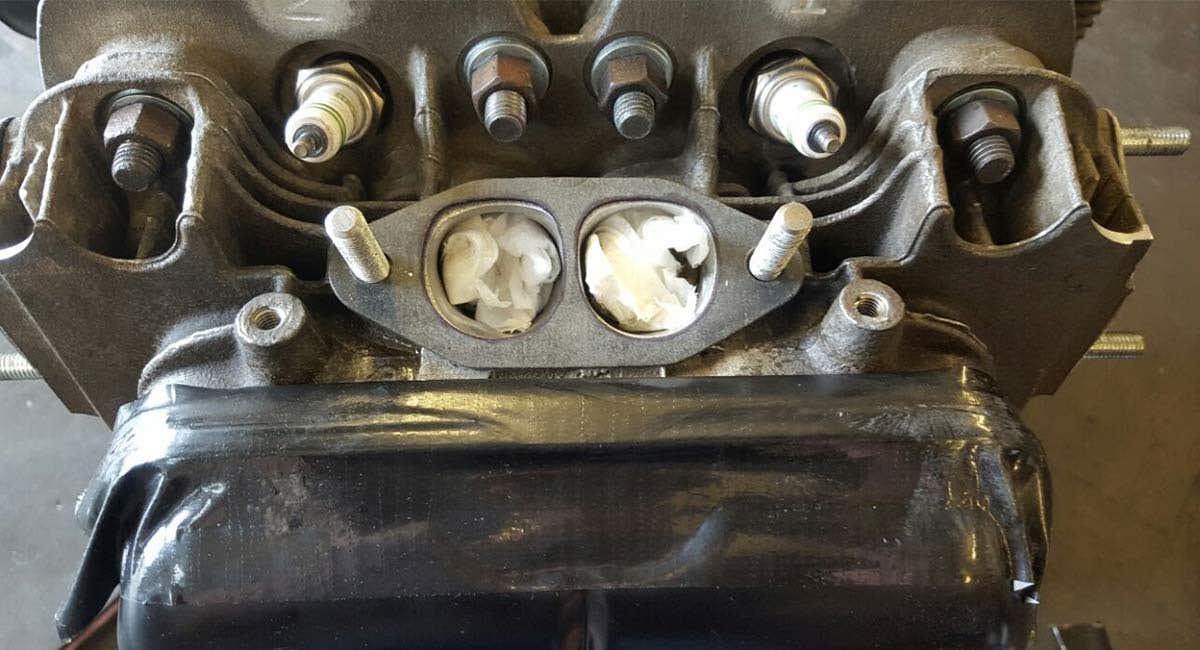

4.    Cylinder Heads and Valves
Cylinder heads play a crucial role in airflow and combustion. Key modifications include:

•    Porting and Polishing: Improves intake and exhaust flow, increasing efficiency and power.
•    Valve Size: Larger valves (e.g., 40mm intake and 35.5mm exhaust) allow more air-fuel mixture into the combustion chamber, critical for high-performance builds.
•    Compression Ratio: Adjust compression based on fuel type and application. High compression (9.0:1 or higher) boosts power but requires premium fuel.



5.    Camshaft Selection
The camshaft controls valve timing and significantly impacts performance:

•    Mild Cams: Improve low-end torque and are ideal for daily drivers.
•    Performance Cams: Increase high-end horsepower but may sacrifice low-end drivability. Examples include the Engle W-series or Webcam camshafts tailored to VW engines.

6.    Ignition System
Modern ignition systems improve reliability and efficiency:

•    Electronic Ignition: Replaces points-based systems for consistent timing and easier tuning.
•    High-Performance Coils and Spark Plugs: Provide a stronger spark, improving combustion and performance.


7.    Carburettors and Fuel Systems
Proper fuel delivery is essential for maximising engine performance:

•    Dual Carburettors: Popular options like EMPI HPMX, Weber IDF or Dellorto DRLA carbs provide better airflow and fuel delivery compared to single-carb setups.
•    Fuel Injection: Modern EFI (electronic fuel injection) systems are gaining popularity for their efficiency and tunability.


8.    Cooling and Lubrication Systems

Heat management is critical in air-cooled engines:

•    External Oil Coolers: Help maintain optimal oil temperature in high-performance builds.
•    Deep-Sump Oil Pans: Increase oil capacity, ensuring adequate lubrication under extreme conditions.
•    Fan and Shroud Upgrades: Improved cooling fans and shrouds enhance airflow, keeping the engine running cooler.



Steps in Building an Air-Cooled VW Engine

1.    Engine Case Preparation
•    Clean / inspect the case halves for cracks or damage and replace any bearing shells if required.
•    Machine the case if necessary for oversized pistons or stroker crank clearance.


2.    Crankshaft and Rotating Assembly

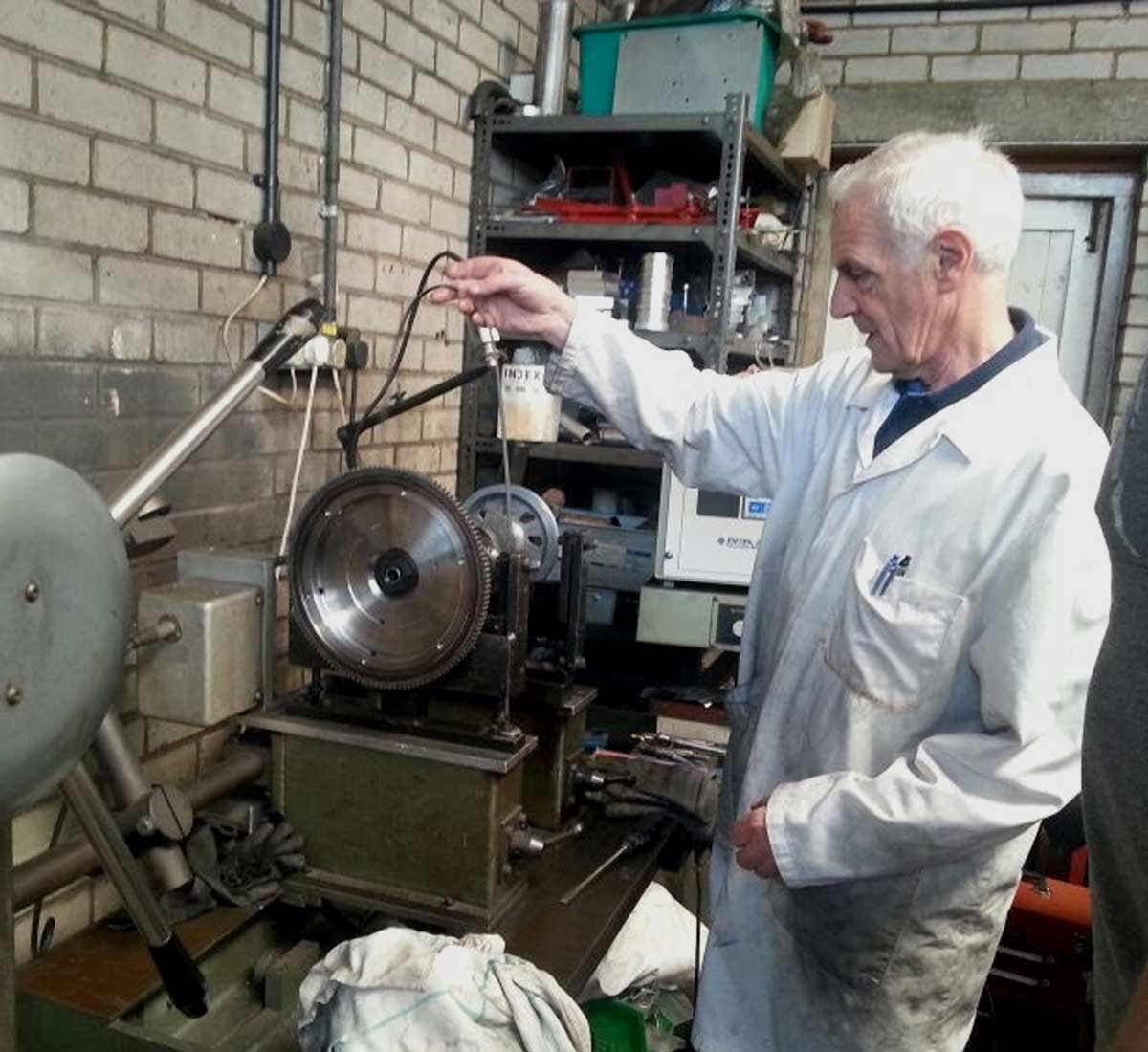

•    Balance the crankshaft, rods, and pistons for smoother operation and reduced wear.
•    Assemble the rotating assembly with precision, ensuring proper clearance and alignment.




3.    Camshaft and Timing Gear Installation

•    Select and install the camshaft according to the engine’s intended use.
•    Degree the camshaft to verify accurate valve timing.

4.    Cylinder and Piston Installation
•    Hone the cylinders for proper ring seating.
•    Install pistons and rings, ensuring correct orientation and gap spacing.



5.    Cylinder Head Installation
•    Fit the heads with appropriate valve springs, guides, and seals.
•    Torque the heads to specification in a crisscross pattern to prevent warping.

6.    Final Assembly
•    Attach the cooling system, tinware, carburettors, and ignition components.
•    Adjust valves, set ignition timing, and tune the carburettors or fuel injection system.


Tuning and Testing

Once assembled, proper tuning is crucial to achieving the desired performance:

•    Break-In Period: Run the engine at varying RPMs for the first few hours to seat the piston rings and ensure even wear.
•    Dyno Testing: Use a dynamometer to fine-tune fuel delivery, ignition timing, and airflow for optimal power and efficiency.
•    Monitoring: Install gauges for oil pressure, temperature, and air-fuel ratio to track engine health.


Building for Longevity and Performance

For builders aiming for durability and consistent performance:

•    Use quality components from reputable manufacturers like EMPI, Engle, Mahle, Scat, CB Performance, and Gene Berg.
•    Stick to moderate compression ratios (8.0:1 to 9.0:1) for street engines to avoid detonation.
•    Invest in a good cooling system and ensure proper lubrication.

Building an air-cooled VW engine is both rewarding and challenging. Whether you’re restoring a classic Beetle or crafting a high-performance powerhouse, attention to detail and quality components are essential. By understanding the intricacies of displacement, cylinder heads, and cooling systems, you can create an engine that combines performance, reliability, and the timeless appeal of Volkswagen’s air-cooled history.

With the right knowledge, tools, and passion, you can transform your VW engine into a custom masterpiece that honours its iconic legacy while delivering modern-day performance.


23 days ago
